Description

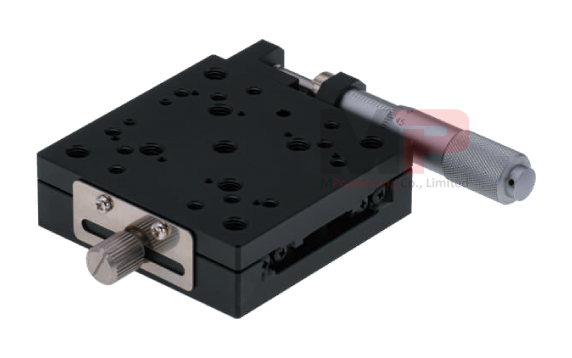

The model T65X-25R, Manual Linear Stage, features crossed-roller bearing guide for precise linear motion and stable performance over the entire 25 mm travel range.
Micrometer Head drives in center-mounted configuration with a 10 μm resolution, and supporting loads up to 5.0 kg. 2 of Single Axis Linear Stages can set up an XY orientation.
Specifications
| Moving Direction | X |
| Travel Range | ± 12.50 mm |
| Platform Size | 65 mm x 65 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 20.50 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.02 mm/25 mm |
| Flatness | 0.03 mm |
| Max. Load Capacity | 5.0 kgf |
| Weight | 0.30 kg |
