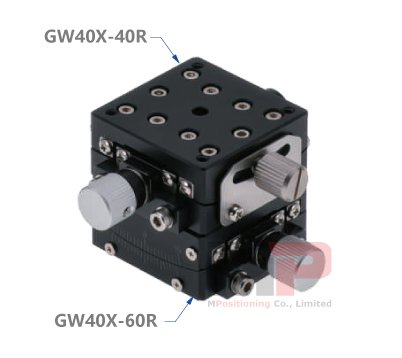

The Precision Dual-Axis Goniometer or Goniometric Stage GW40XY-40R is stacked by an Upper Goniometer GW40X-40R and a Lower Goniometer GW40X-60R. Both the Upper and Lower Goniometric Stages will rotate about the same rotation center above the top mounting surface with 40 mm. The small 40 mm x 40 mm mounting platform supports up to 3.0 kgf and provide four M3 x 0.5 tapped mounting holes on 32 mm centers. Mounting slots for M3 are provided from inside of the bottom plate.
Specifications
|
Part Number |
||||||
|
Enjoy Shipping on Amazon |
||||||
|
Moving Direction |
α |
α & β |
||||
|
Rotation Range |
±10° |
±6° |
±10° (Upper), ±6° (Lower) |
|||
|
Platform Size |
40 mm x 40 mm |
|||||
|
Drive Mechanism |
Worm & Gear |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||||
|
Height of Rotation Center (W) |
40 ±0.2 mm |
60 ±0.2 mm |
40 ±0.4 mm |
|||
|
Min Readout per Rev. of Knob |
1.5° (Approx.) |
1.6° (Approx.) |
1.5° (Upper), 1.6° (Lower) |
|||
|
Minimum Readout |
0.1° |
0.1° |
0.1° |
|||
|
Thickness |
20 mm |
40 mm |
||||
|
Max. Load Capacity |
3.0 kgf |
3.0 kgf |
||||
|
Weight |
0.20 kg |
0.40 kg |
||||
| Moving Direction | α & β |
| Rotation Range | ±10° (Upper), ±6° (Lower) |
| Platform Size | 40 mm x 40 mm |
| Drive Mechanism | Worm & Gear |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Height of Rotation Center (W) | 40 ±0.2 mm |
| Min Readout per Rev. of Knob | 1.5° (Upper), 1.6° (Lower) |
| Minimum Readout | 0.1° |
| Thickness | 40 mm |
| Max. Load Capacity | 3.0 kgf |
| Weight | 0.40 kg |
