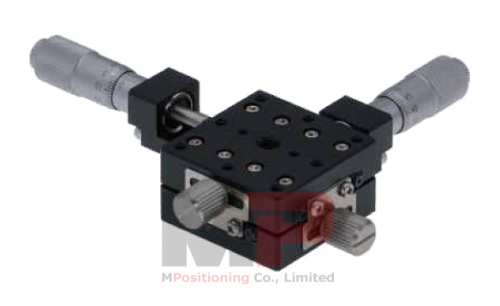

The Manual XY Linear Stage T40XY-13CB is one of our Ultra-Thin XY-Axis Stage with 22 mm of thickness for the applications in a limited space. It is equipped with the Crossed-Roller Bearing Slide Guides. The 40 mm x 40 mm mounting platform supports up to 1.0 kg with a smooth XY-Axis adjustment range of ±6.5 mm. The actuator of Micrometer Head drives in Center position of the Single-Axis Stage.
Specifications
|
Part Number |
||||||
|
Enjoy Shipping on Amazon |
|
|
|
|||
|
Moving Direction |
X & Y |
X & Y |
||||
|
Travel Range |
±6.5 mm |
|||||
|
Platform Size |
40 mm x 40 mm |
|||||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||||
|
Thickness |
30 mm |
22 mm |
||||
|
Minimum Readout |
0.01 mm |
|||||
|
Moving Flatness |
≤ 0.01 mm/13 mm |
|||||
|
Flatness |
0.04 mm |
0.04 mm |
||||
|
Max. Load Capacity |
3.0 kgf |
1.0 kgf |
||||
|
Weight |
0.30 kg |
0.25 kg |
||||
| Moving Direction | X & Y |
| Travel Range | ± 6.5 mm |
| Platform Size | 40 mm x 40 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Center-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 22 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.01 mm/13 mm |
| Flatness | 0.04 mm |
| Max. Load Capacity | 1.0 kgf |
| Weight | 0.25 kg |
